Details

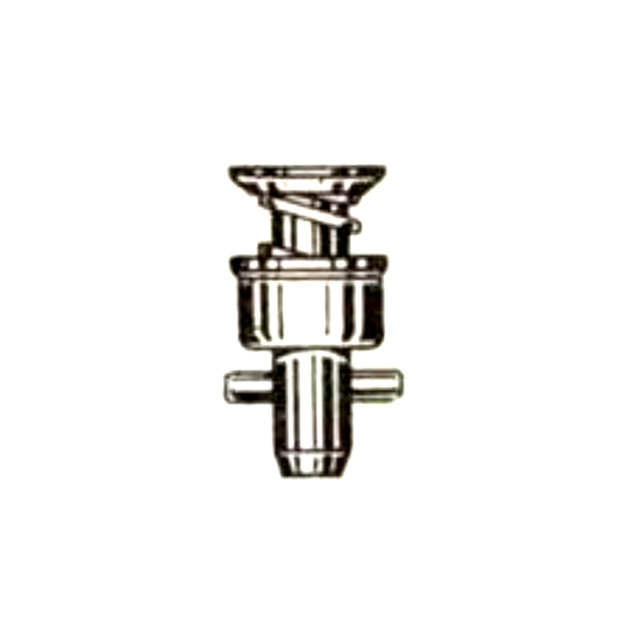

2600-7 is a Camloc 2600 series light-duty 1/4-turn stud with a slotted head, made from cadmium-plated steel. It is the smaller, lighter counterpart to the 4002 series, used to secure lightweight access panels and inspection doors on WWII and vintage aircraft with a quick quarter turn.
Part Number: 2600-7
Head Type: Slotted | Series: 2600 (Light Duty)
Total Grip (Panel Thickness): .210" - .239"
Tensile Strength: 300 lbs ultimate / 200 lbs working
Material: Steel, cadmium plated
Condition: New
Compatible Receptacles: 212 series, light duty
Retaining Washer: studs of dash length -5 and longer require a 2600-LW retaining washer
Selecting Length: match the dash number to your measured total panel grip thickness; grip range increases in .030" steps per dash number
Photos are for reference only.
