Details

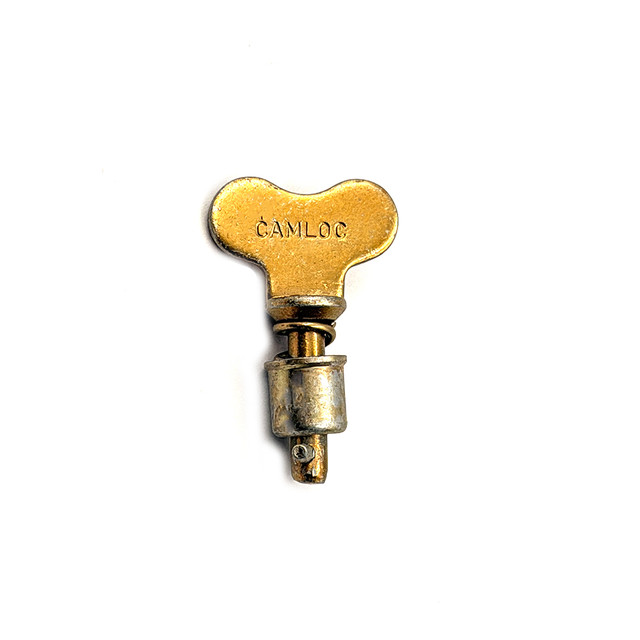

4002-6W is a Camloc 4002 series heavy-duty 1/4-turn stud with a wing head for fast hand-tightening, no tool required. It engages a mating grommet and receptacle with a quarter turn for quick access to cowlings, inspection panels, and access doors on WWII and vintage aircraft.
Part Number: 4002-6W
Head Type: Wing head | Series: 4002 (Heavy Duty)
Total Grip (Panel Thickness): .201" - .230"
Tensile Strength: 1050 lbs ultimate / 700 lbs working
Material: Steel, cadmium plated
Condition: New
Compatible Grommets: 4002-G, 4002-N, or 4002-H, sized to match total grip
Compatible Receptacles: 212 or 244 series, heavy duty
Note: wing head allows finger-tight installation and removal without a screwdriver
Photos are for reference only.
