Details

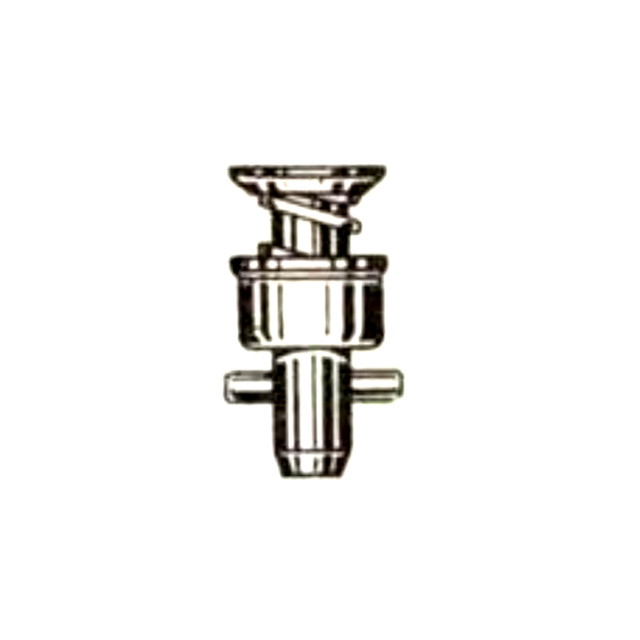

4002-9 is a Camloc 4002 series heavy-duty 1/4-turn stud with a slotted head. It engages a mating grommet and receptacle with a quarter turn, giving quick, tool-free access to cowlings, inspection panels, and access doors on WWII and vintage aircraft.
Part Number: 4002-9
Head Type: Slotted | Series: 4002 (Heavy Duty)
Total Grip (Panel Thickness): .291" - .320"
Tensile Strength: 1050 lbs ultimate / 700 lbs working
Material: Steel, cadmium plated
Condition: New
Compatible Grommets: 4002-G, 4002-N, or 4002-H, sized to match total grip
Compatible Receptacles: 212 or 244 series, heavy duty
Selecting Length: match the dash number to your measured total panel grip thickness; grip range increases in .030" steps per dash number
Photos are for reference only.
