Details

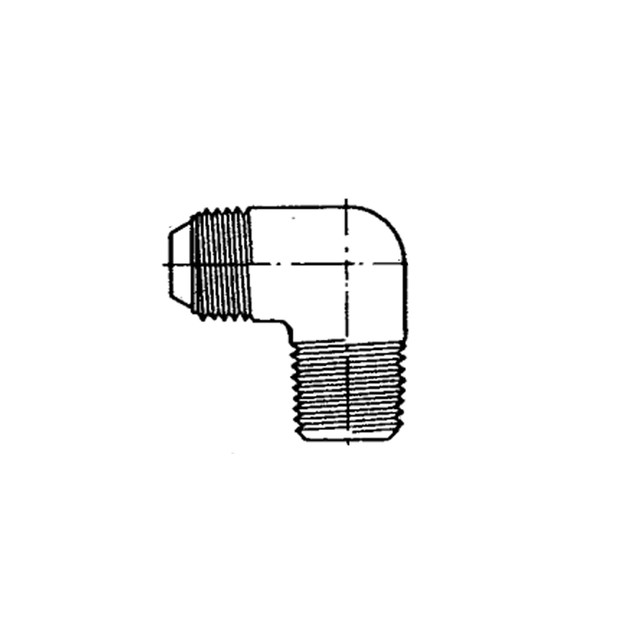

AC811CT10D AC811 aluminum alloy 90 degree flared tube to pipe thread elbow for 5/8 in. OD tube, NS condition.
Part Number: AC811CT10D
Part Type: Elbow - Flared Tube and Pipe Thread - 90 Degree
Condition: NS
Thread: 7/8-18 tube x 1/2 in. pipe (NPT)
The AC811CT10D is an aluminum alloy 90 degree flared tube to pipe thread elbow from the pre-AN Army Air Corps AC811 flared tube fitting system, used with AC811-BT nuts and AC811-T sleeves. The AN counterpart is the AN822, but in the -10 size the AC811 tube thread is 7/8-18 versus 7/8-14 on AN, so replace it as a complete unit with matching AC811 nuts and sleeves.
Photos are for reference only.
Warranty Information
All NS parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
