Details

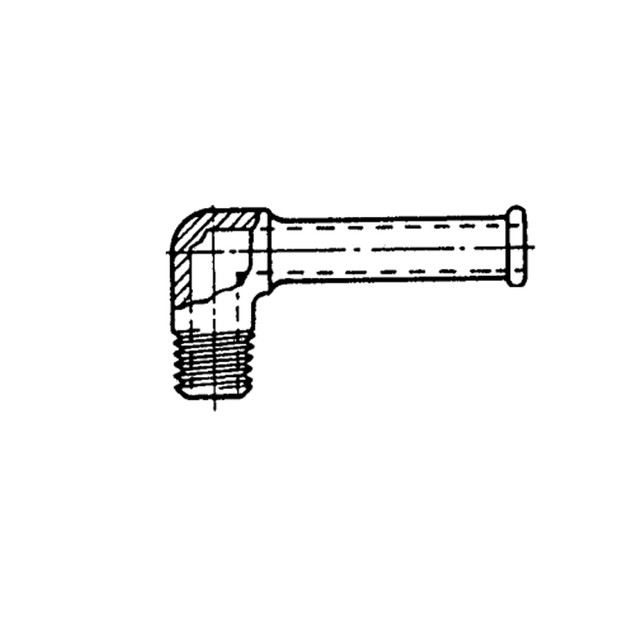

AC852-16-16 is a Parker Appliance Company 90-degree elbow fitting for hose-to-pipe-thread connections from the pre-AN AC852 series. Also known as Parker HLC-16-16. Confirmed in B-25 Mitchell fuel transfer valve assembly engineering drawings (62A-48316 and 62A-48317); called out as an elbow (2 required per assembly) on B-25C ships. Cross-references to AN842-17. Replaced by A18081-2 on B-25D ships.
Part Number: AC852-16-16
Type: Elbow, 90°, Hose and Pipe Thread
Manufacturer: Parker Appliance Co. (Parker Hannifin)
Also Known As: Parker HLC-16-16
Aircraft: B-25 Mitchell (B-25C series)
AN Equivalent: AN842-17
Quantity (per assembly): 2
Replaced By: A18081-2 (B-25D ships)
Photos are for reference only.
