Details

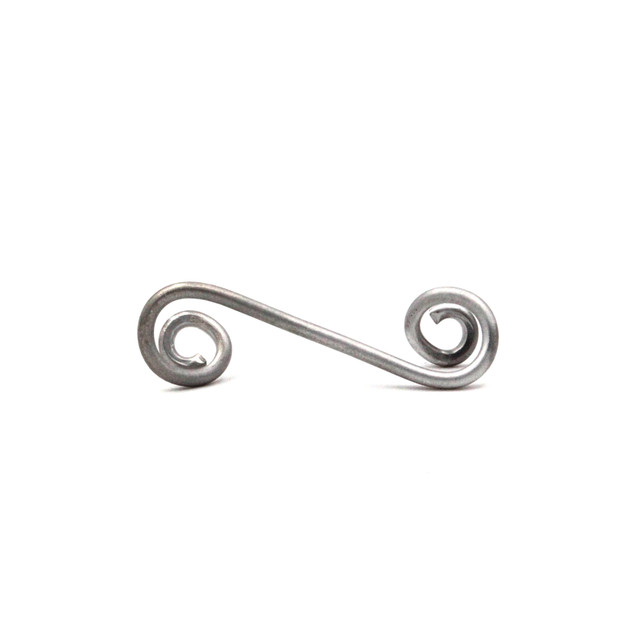

S3-225 is a Dzus Type S retention spring for use with 3/16" body diameter (Type A/F series) Dzus studs. Riveted to the support structure. The stud cams into the spring with a quarter-turn to lock. Spring height (H) determines the panel stack thickness the fastener can accommodate.
Part Number: S3-225
Wire Diameter: .045" | Spring Height (H): .225"
Center-to-Center: 5/8"
Material: Music wire, cadmium plated
Condition: New Surplus
For Use With Studs: Type A3, F3 (3/16" body diameter series)
Compatible Stud SKU Range: A3-xx, F3-xx
Recommended Deflection: Approximately .015"-.020" beyond panel stack height
Photos are for reference only.
