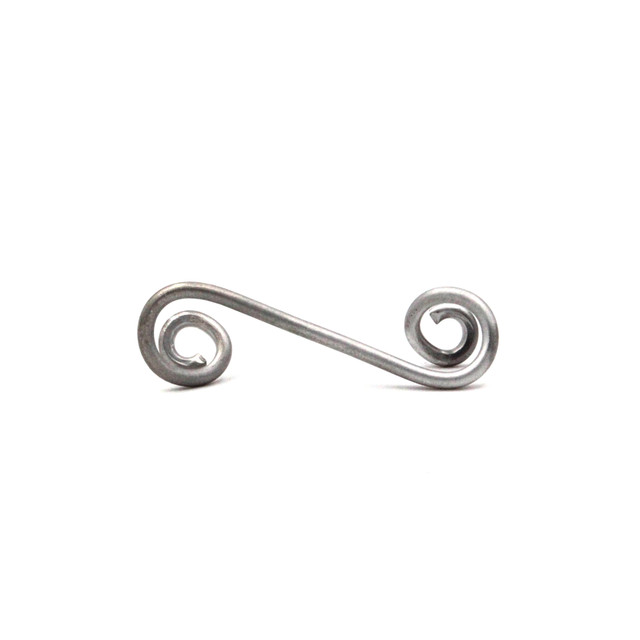

S5-325 is a Dzus Type S retention spring for use with 5/16" body diameter (Type A/F series) Dzus studs. Riveted to the support structure. The stud cams into the spring with a quarter-turn to lock. Spring height (H) determines the panel stack thickness the fastener can accommodate.
Part Number: S5-325
Wire Diameter: .080" | Spring Height (H): .325"
Center-to-Center: 1"
Material: Music wire, cadmium plated
Condition: New Surplus
For Use With Studs: Type A5, F5 (5/16" body diameter series)
Compatible Stud SKU Range: A5-xx, F5-xx
Recommended Deflection: Approximately .015"-.020" beyond panel stack height
Photos are for reference only.
Warranty Information
All parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
