Details

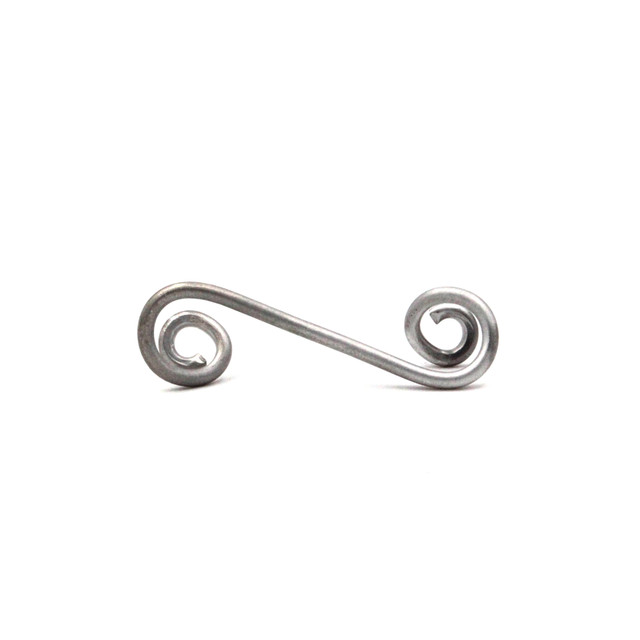

S7-400 is a Dzus Type S retention spring for use with 7/16" body diameter (Type A/F series) Dzus studs. Riveted to the support structure. The stud cams into the spring with a quarter-turn to lock. Spring height (H) determines the panel stack thickness the fastener can accommodate.
Part Number: S7-400
Wire Diameter: .100" | Spring Height (H): .400"
Center-to-Center: 1-7/16"
Material: Music wire, cadmium plated
Condition: New Surplus
For Use With Studs: Type A7, F7 (7/16" body diameter series)
Compatible Stud SKU Range: A7-xx, F7-xx
Recommended Deflection: Approximately .015"-.020" beyond panel stack height
Photos are for reference only.
Warranty Information
All parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
