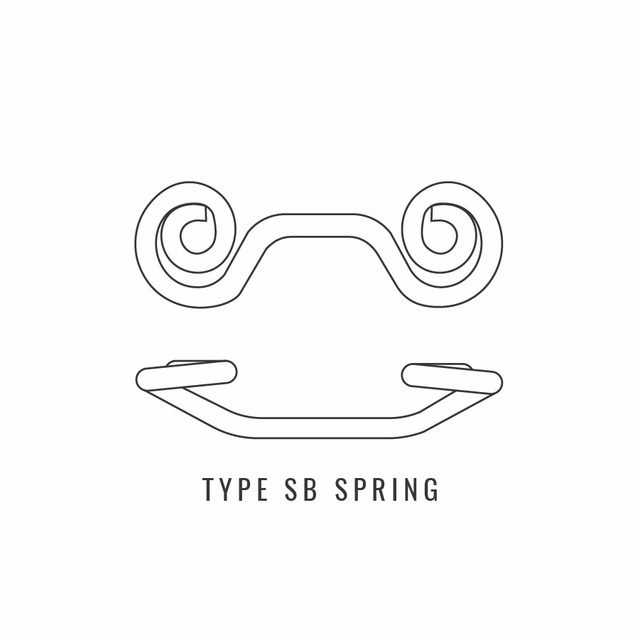

SB4-1 Special Dzus Spring - For Box Corner and Side Installation

This is a part number SB4-1 Spring manufactured by Dzus, it's ready to be part of various aircraft restoration projects!

ABOUT: Dzus Fasteners are made of heat-treated and cadmium plated nickle steel*, and consist of a grommet, spring, and stud, the grommets being composed of aluminum. They are used in covers, plates, cowlings, and similar units, which require quick removal and replacement. When they are broken of otherwise damaged they must be replaced.

Part Number: SB4-1
Part Type: Special Spring - For Box Corner and Side Installation
Mfg: Dzus
Aircraft: various
Condition: NS, Shelf wear due to age

DETAILS: SB4-1 Special Dzus Spring  - For Box Corner and Side Installation. This is a latest designed spring and supersede early type springs and are completely interchangeable and made of the same size wire. These springs have shallower coils , which permit easier riveting.

For more information on Dzus Fasteners and sizing visit our BLOG - About Dzus Fasteners.

Images for reference only.
