Details

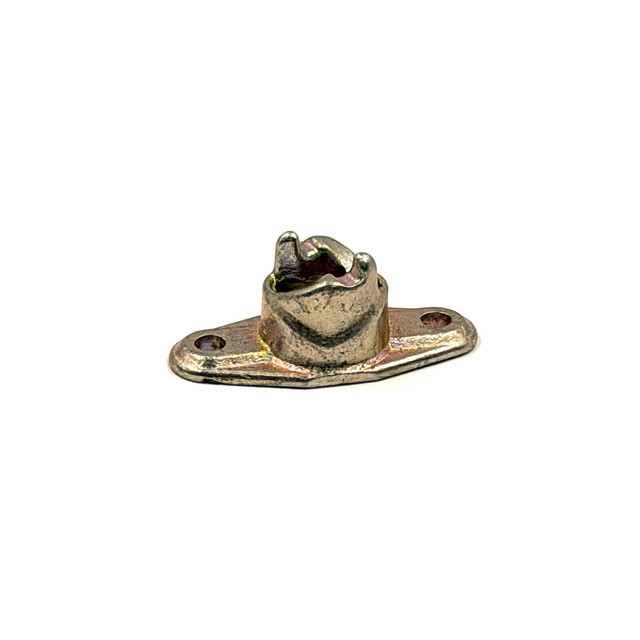

212-12M-H is a Camloc 212 series fixed-depth receptacle for the 2600/2700 series light-duty 1/4-turn stud. It mounts to the airframe structure and provides the rigid mating point the stud locks into with a quarter turn.
Part Number: 212-12M-H
Type: Fixed depth, rigid receptacle
Compatible Studs: 2600, 2700 series, light duty
Material: Silicon bronze or steel body (finish varies by dash callout), cadmium or zinc plated
Condition: New
Mounting: standard rivet holes, approximately 3/4" center-to-center
Note: AirCorps Depot shelf callout; confirm the M-H finish/width designation against the drawing or part in hand
Fitment: verify against your parts drawing before ordering, since several 212-12 width and finish variants exist
Photos are for reference only.
