Details

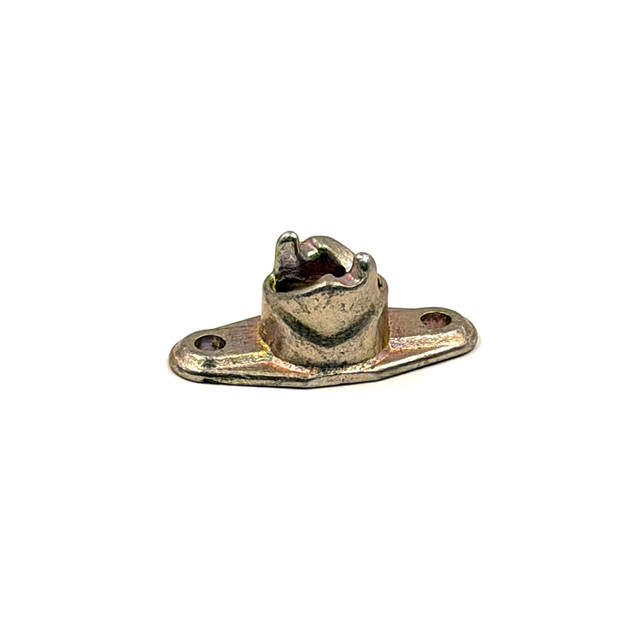

214-16 is a Camloc 214 series fixed-depth, rigid receptacle for the 4002 series heavy-duty 1/4-turn stud. It mounts to the airframe structure with rivets and gives the stud a solid, non-floating mating point to lock into with a quarter turn.
Part Number: 214-16
Type: Fixed depth, rigid receptacle
Compatible Studs: 4002 series, heavy duty
Compatible Grommets: 4002-G or 4002-N, per standard stud/grommet/receptacle selection chart
Material: Silicon bronze, cadmium plated
Condition: New
Mounting: Plain rivet holes, mounting hole diameter .128" - .134", center-to-center spacing approximately 1.000"
Overall Dimensions: Approximately 1.375" long x 0.688" wide x 0.531" high
Note: fixed/rigid design, does not self-align like the floating 244 series; verify rivet hole spacing against your panel before installing
Photos are for reference only.
