Details

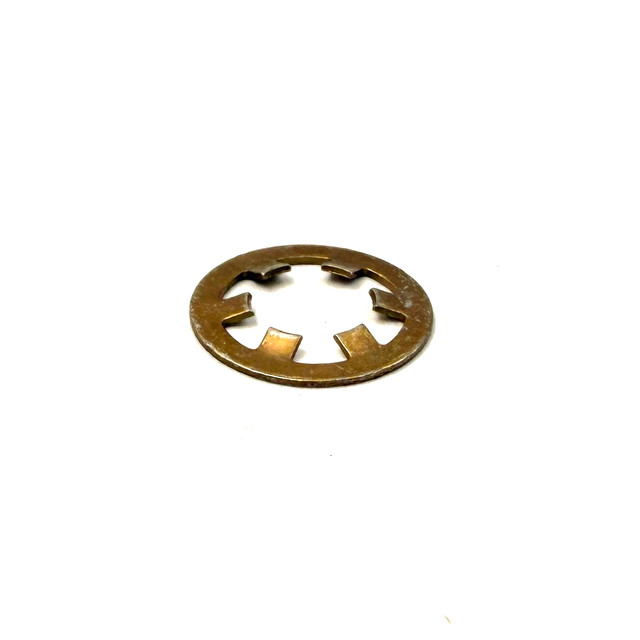

2600-LW is a Camloc 2600/2700 series retaining washer, an internal-tooth washer used to lock a light-duty quarter-turn stud rigidly in its mounting hole. It is required on stud assemblies of dash length -5 and longer to keep the stud captive.
Part Number: 2600-LW
Type: Internal tooth, solid retaining washer
Series: 2600/2700 (Light Duty)
Material: Steel
Condition: New
Use: required for 2600/2700 series studs of dash length -5 or greater
Alternative: if you want the stud to fall away for minimum internal projection instead of staying captive, use split washer 2600-SW2
Note: sold individually; confirm stud dash length before ordering
Photos are for reference only.
Warranty Information
All NS parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
