Details

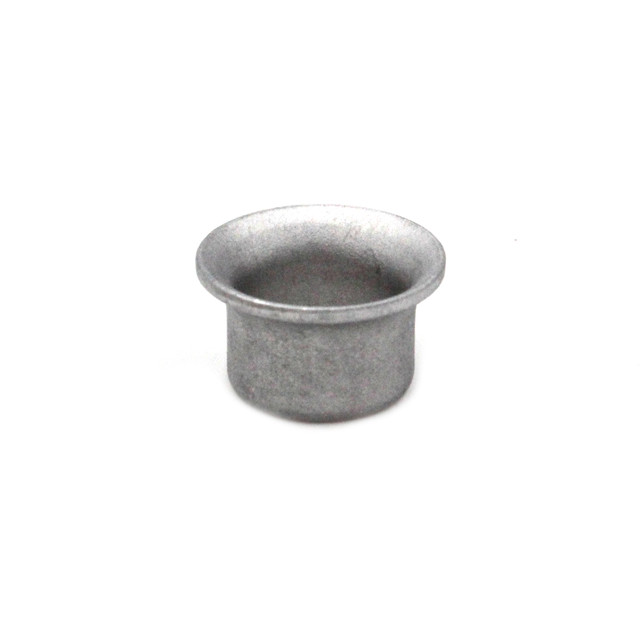

GA3-175 is a Dzus Type GA aluminum grommet. Installed in the removable panel to protect the panel hole and provide a precision seat for the Dzus stud body. Type GA grommets are for Type A oval head studs; Type GF grommets are for Type F/FA flush head studs.
Part Number: GA3-175
Type: GA for Type A studs
Width: 7/32" | Length (T): .175"
Material: Aluminum
Condition: New Surplus
For Use With Studs: Type A3/AJ3, 3/16" body diameter series
Max Panel Thickness: .025"
Note: Select grommet length (T dimension) to match your panel thickness. Grommet height adds to the stud length calculation.
Photos are for reference only.
Warranty Information
All parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
