Details

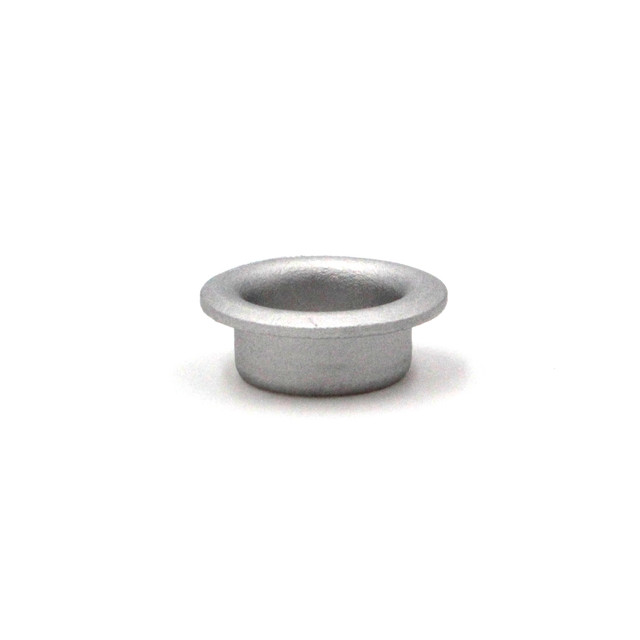

GF5-175 is a Dzus Type GF aluminum grommet. Installed in the removable panel to protect the panel hole and provide a precision seat for the Dzus stud body. Type GA grommets are for Type A oval head studs; Type GF grommets are for Type F/FA flush head studs.
Part Number: GF5-175
Type: GF for Type F/FA studs
Width: 3/8" | Length (T): .175"
Material: Aluminum
Condition: New Surplus
For Use With Studs: Type F5/FA5, 5/16" body diameter series
Max Panel Thickness: .062" (up to .125" with extended-length grommets)
Note: Select grommet length (T dimension) to match your panel thickness. Grommet height adds to the stud length calculation.
Photos are for reference only.
Warranty Information
All parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
