Details

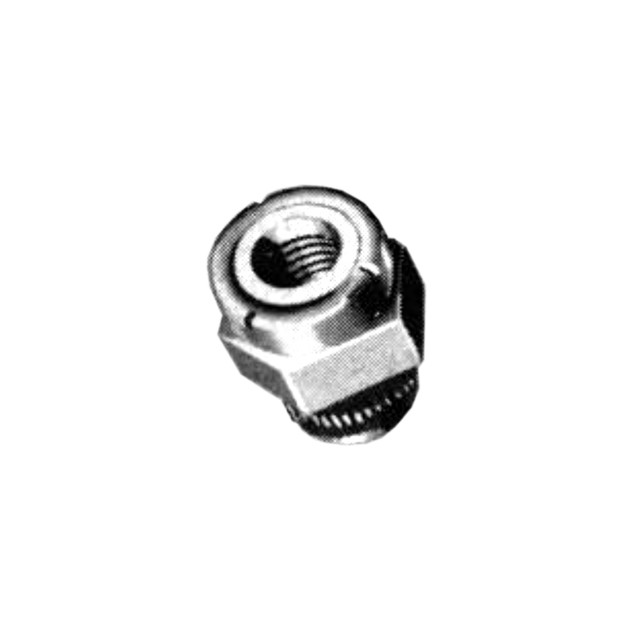

42ND10-048 spline nut with nylon insert, NS condition.
Part Number: 42ND10-048
Part Type: Spline Nut
Condition: NS
Thread: 1/4-28 (.2500-28 UNJF-3B per ESNA spec)
The nylon locking insert replaced ESNA's earlier fiber insert, which is prone to cracking with age. AirCorps recommends nylon insert fasteners wherever possible. The 42ND10-048 is a self-locking spline nut. The splined outside diameter lets the nut be driven and held with a spline socket from one side only, so it works as a blind-mounted fastener where there is no room to get a wrench on a hex nut and no flange to rivet a plate nut to.
Photos are for reference only.
Warranty Information
All parts are sold "as-is". Airworthiness to be determined by an appropriately rated certificate holder. No warranty is implied. AirCorps Depot reserves the right to charge a restocking fee when deemed appropriate.
